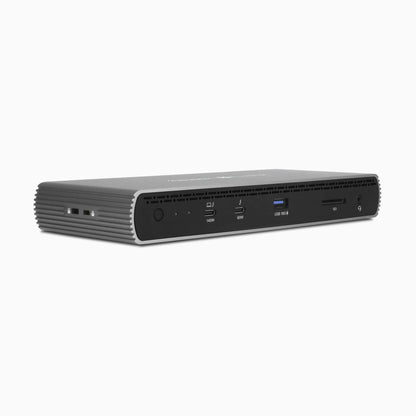

Thunderbolt 5 Dock

• Thunderbolt™ 5 Connectivity – Features one upstream and three downstream TB5 ports, delivering blazing-fast 80 Gbps speeds with the ability to boost to 120 Gbps.
• Offers a full array of connectivity, including USB-A, SD card reader, Ethernet, and audio.
• Massive Power Delivery: Provides 140W of charging power to the host laptop—ideal for powering high-end systems like MacBook Pro.

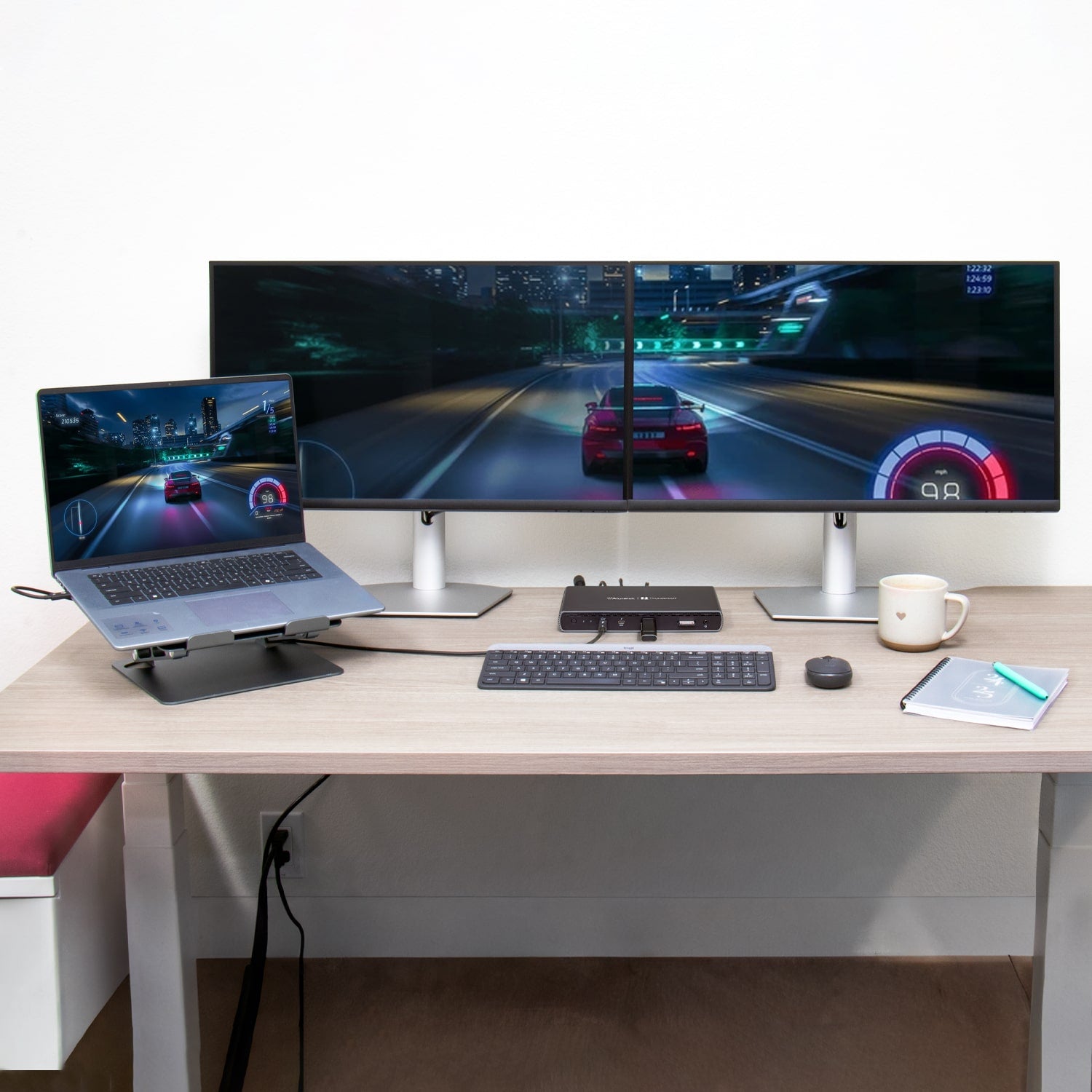

• Dual 8K Display Support: Handles two 8K/60Hz monitors with ease, offering stunning visuals.

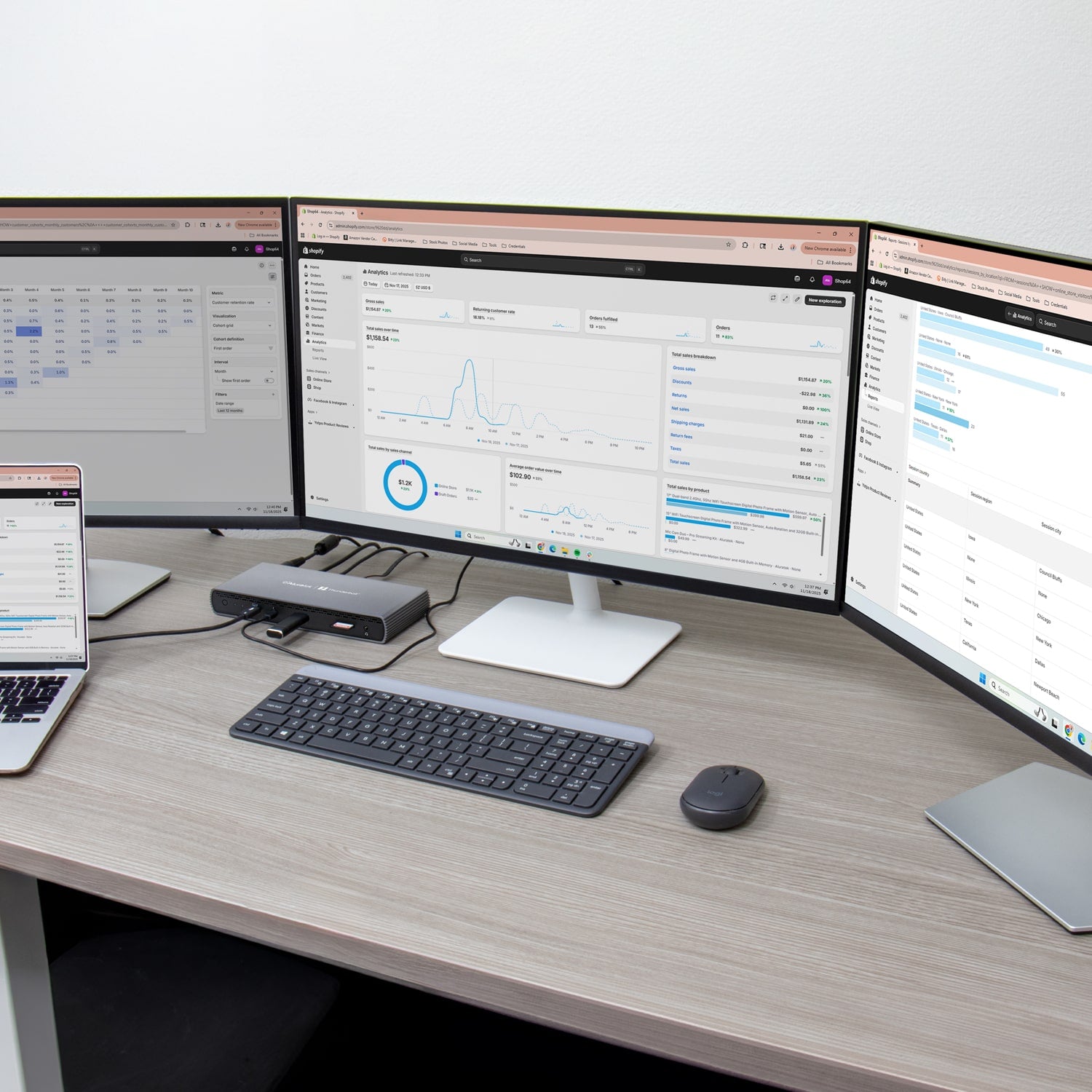

• Triple 4K Support on Windows: Can run up to three monitors on Windows up to 4K/144Hz resolution.
• Extremely High-Speed SD Card Reader: Equipped with a UHS-II SD 4.0 slot that delivers up to 312 MB/s read speed—perfect for high-res photo and video transfers.
• 2.5 Gbps Ethernet Port: Enables network speeds that are 2.5× faster than standard Gigabit Ethernet, great for fast file transfers and network-intensive tasks.

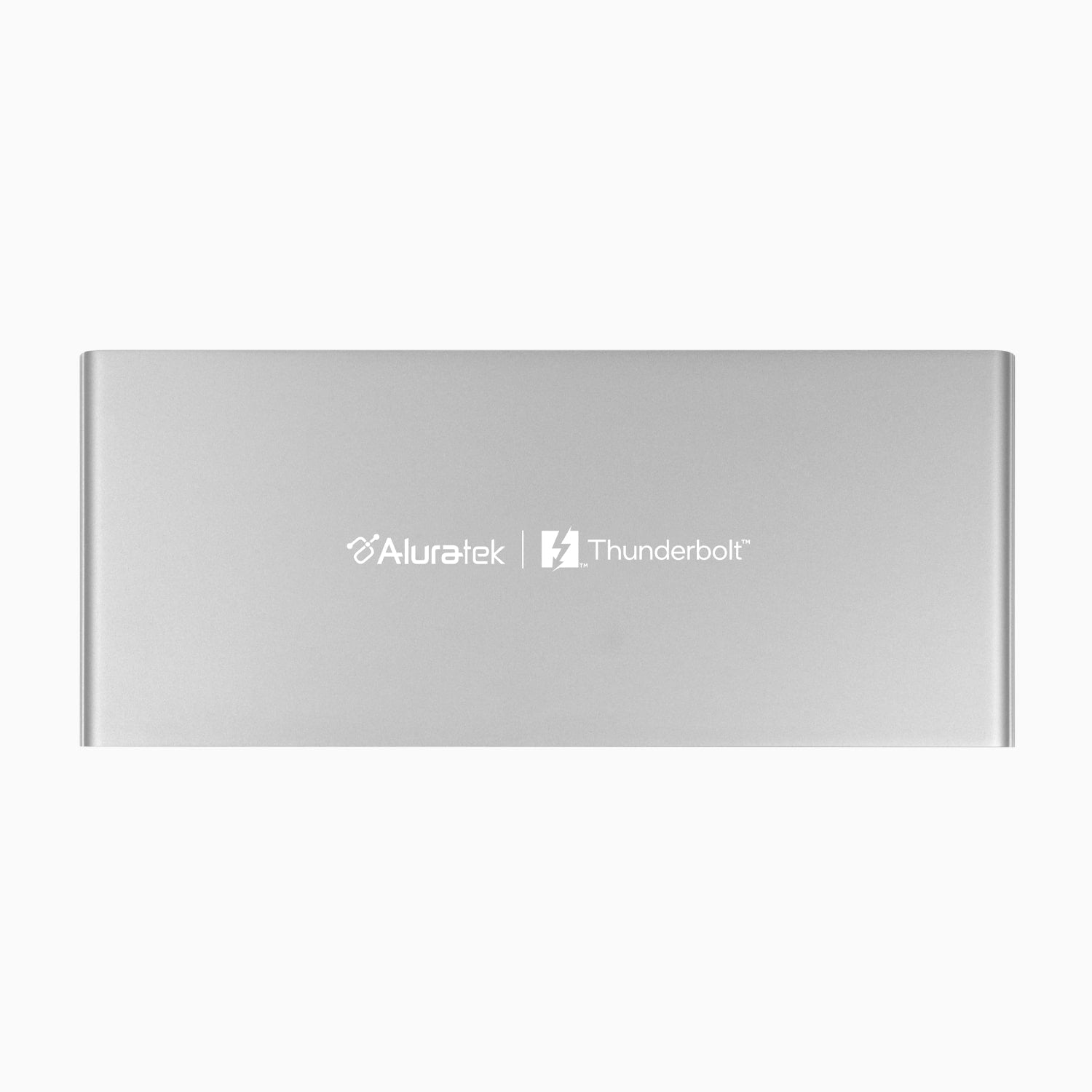

• Premium Build Quality: Boasts a sleek, sturdy metallic design with thoughtful port layout, non-slip pads, and ventilation for heat management.
• Connect two computers via their Thunderbolt™ port using a Thunderbolt™ cable for Thunderbolt™ Share
• Works with Thunderbolt™ 3 and 4: Backward-compatible—so older TB3/TB4 devices can still leverage the dock, while being ready for future TB5 laptops.

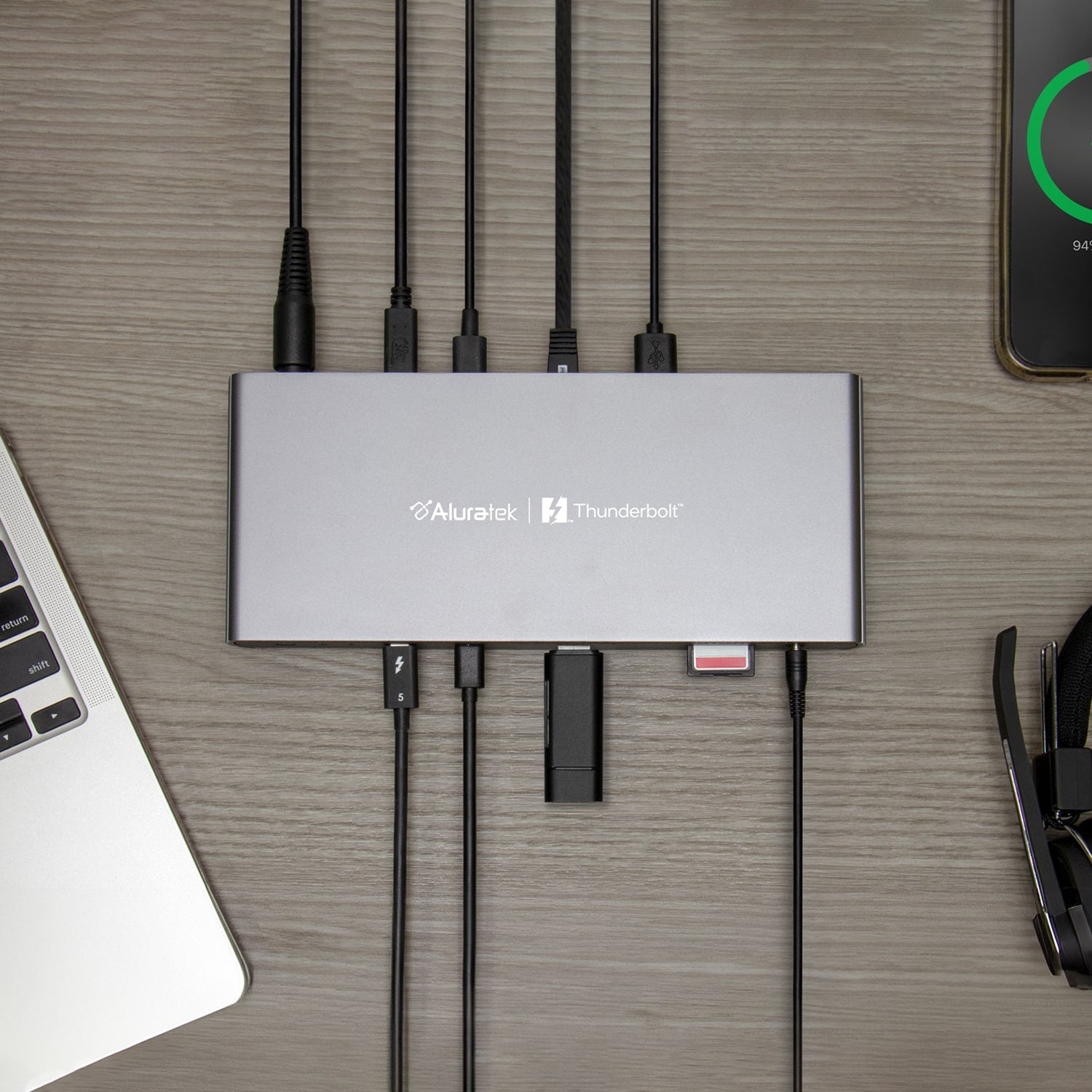

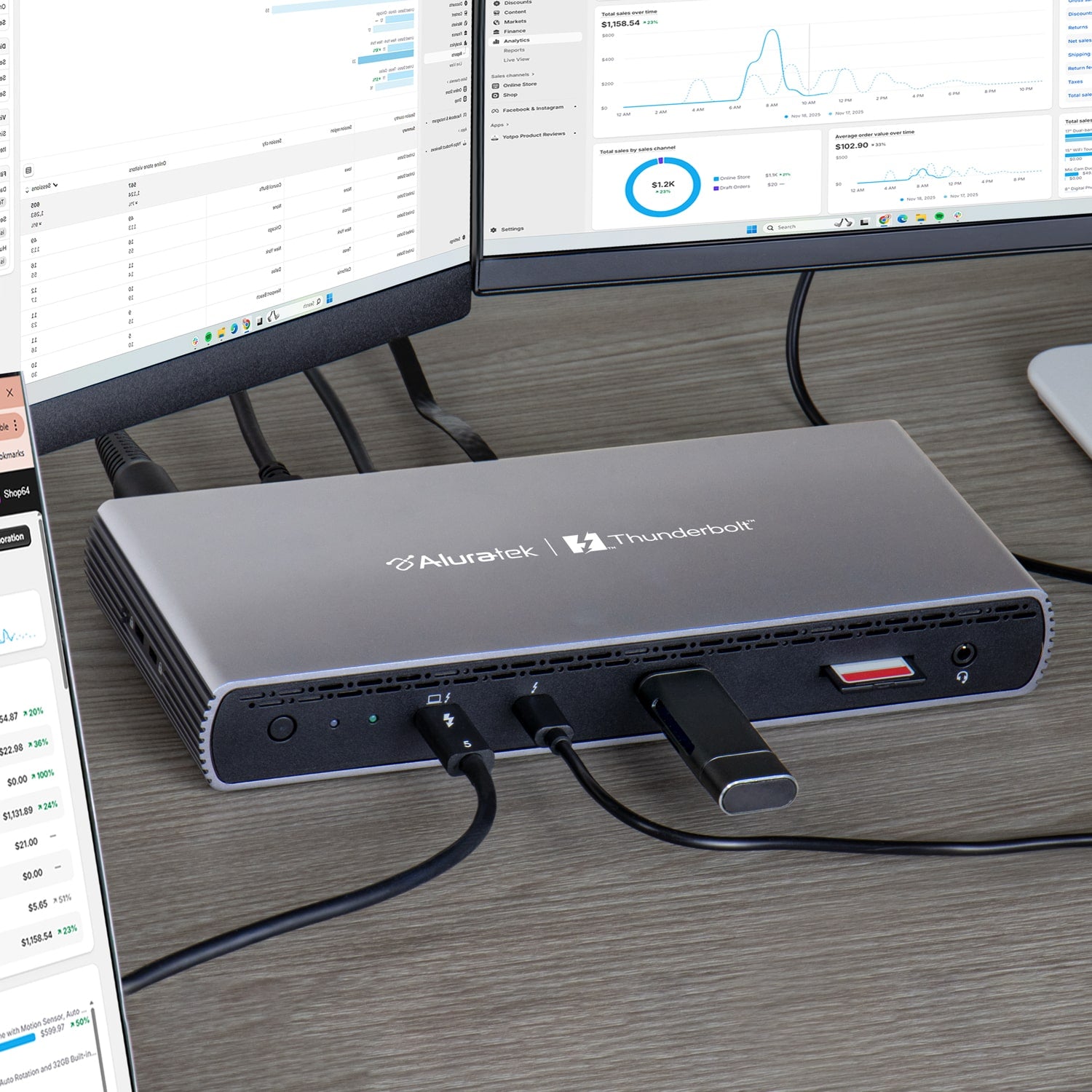

• All-in-One Workstation Capabilities: Simplifies setups by supporting multi-monitor configurations, fast data transfers, and device charging—all through a single, compact dock.
• Limited 1 Year Warranty

• The Thunderbolt™ 5 Dock must be connected to a Thunderbolt™ 5 (USB-C) port on the host device to unlock its full potential of high-speed data transfer (up to 80 Gb/s symmetrical and up to 120 Gb/s for video) and up to 140W power delivery for charging high-end laptops.

• All advertised features—full port utility, maximum throughput, and charging capability—are contingent on this connection; using older ports (TB4, USB-C, etc.) may limit performance or require adapters.

Material: Aluminum & PC+ABS

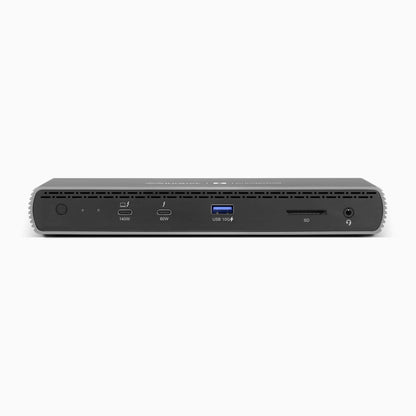

Upstream Port: 1x Thunderbolt™ 5/USB-C

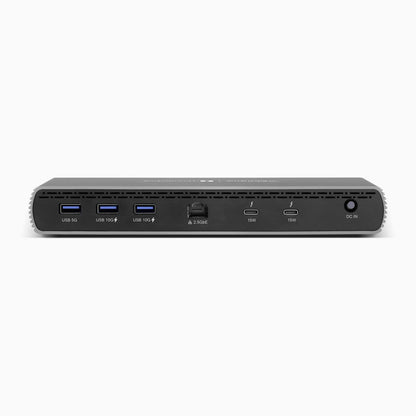

Downstream Port:
1x Thunderbolt™ 5/USB-C, 60W PD
2x Thunderbolt™ 5/USB-C, 15W PD
3x USB-A 10G, BC1.2 (5V/1.5A) and Apple Charge 2.1A
1x USB-A 5G

Max Display:
3x Displays, Dual displays up to 2x 8K60
Triple displays up to 3x 4K144

Ethernet: 1x RJ45, 2.5Gbps
Audio: Audio input/output,3.5 TRRS Audio Jack
SD Card Reader: 1x SD4.0

LED Indicator:
Power LED Green when power on
Thunderbolt™ 5 LED Blue when linked to Thunderbolt™ 5

Power:
Power Mode Self-Powered
Power Input DC180W
Power Charging: PD 3.1 up to 140W

Working Environment:
Operation Temperature 0-35 degree
Storage Temperature -20-70 degree
Compliance: Thunderbolt™ 5, CE, FCC, VCCI, RCM

Product Weight: .46 lbs (211.1 g)
Product Size: 8.9x3.8x1.22 inch (227.51x96.8x31.1 mm)
